How to Change a Lawn Edger Blade Safely

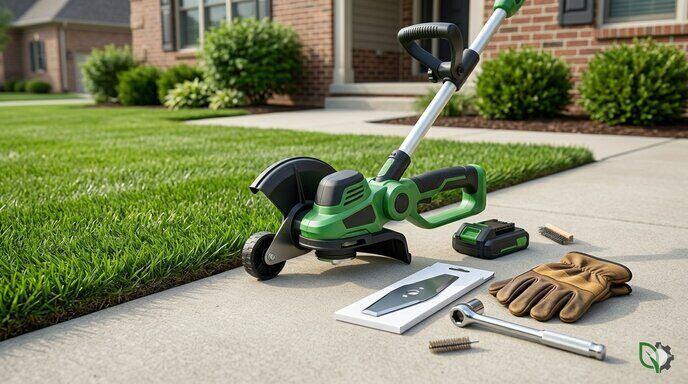

What You Need

• Cut-resistant gloves.
• A socket wrench with the correct metric socket — usually 13mm, 14mm or 1/2 inch.
• The replacement blade specified for your model.
• A flathead screwdriver or the supplied lock pin.
• A wire brush and a rag.

Step-by-Step

Step 1 — Disable the tool

Pull the battery. If your edger has a separate safety switch or lockout key, disengage it as well. Lay the tool on a flat surface with the blade facing away from you.

Step 2 — Lock the spindle

Most edgers have a hole in the blade housing that lines up with a hole in the drive plate. Rotate the blade slowly until they align, then insert the supplied lock pin or a long, sturdy flathead screwdriver to stop rotation. Never lock the spindle by jamming the blade against concrete — that bends the arbor.

Step 3 — Break the nut loose

Check your manual, but typically you will need to turn the nut clockwise to loosen it, because edger arbors are commonly reverse-threaded so that cutting rotation tightens rather than backs off the nut. Slip your socket wrench over the nut and break it loose with a short, firm pull rather than a jerk.

Step 4 — Remove and inspect

Take off the nut, the outer washer or blade plate, and the blade. Keep the parts in the order they came off. Inspect the arbor for wobble, the washers for scoring, and the housing for packed soil.

Step 5 — Clean the mating surfaces

Wire-brush the drive plate and both washers. Dried soil between the blade and the plate is a leading cause of vibration, and vibration is what loosens hardware and cracks housings.

Step 6 — Fit the new blade the right way round

Match the orientation of the blade you removed. Most edger blades have a bevel or a stamped arrow indicating rotation direction. A reversed blade will cut, badly, and will throw far more soil at you.

Step 7 — Torque and verify

1. 1Thread the nut on by hand to confirm it is not cross-threaded.
2. 2With the spindle still locked, tighten to snug, then add roughly a quarter turn.
3. 3Remove the lock pin.
4. 4Spin the blade by hand — it should rotate freely with no scraping and no side-to-side play.
5. 5Reinstall the battery, hold the tool clear of the ground, and run it for five seconds to check for vibration.

Blade Changes by Brand

The seven steps above cover every edger. What changes between brands is the fastener, the spindle lock and the blade size — the details that make people give up halfway through.

Ryobi edger blade replacement

Pull the battery, align the hole in the blade guard with the drive plate and drop in the lock pin. The nut is reverse-threaded — clockwise loosens. Ryobi blades are keyed to the drive plate, so if the new blade will not sit flat, rotate it until the tabs seat before you thread the nut.

Echo edger blade replacement

Echo uses a conventional right-hand bolt: counterclockwise loosens. Insert a hex key or screwdriver through the port in the gearcase to lock rotation. Keep the inner and outer thrust washers in order; running without the inner washer chews the gearcase face.

Stihl edger blade replacement

On Stihl edger heads, line up the gearhead port and insert the locking pin until the shaft stops turning, then loosen the bolt counterclockwise. Stihl specifies a torque figure in the manual — snug plus a quarter turn is close enough on the others, but on this one, use the number.

Black+Decker and Craftsman

These use a single center bolt with a plastic wedge or a supplied wrench that braces the blade. Do not brace the blade against concrete: the arbor on these lighter machines bends more easily than on the pro tools.

Troy-Bilt

Troy-Bilt edgers run a blade adapter between the blade and the drive plate. Note its orientation before removal — installing it backwards holds the blade at a slight angle and produces a vibration people usually blame on the new blade.

When to Replace Instead of Sharpen

• Any crack, however small — replace immediately.
• Blade diameter reduced more than about a quarter inch from wear.
• Bent from a rock or root strike; a bent blade cannot be trued reliably.
• Deep notches in the cutting edge that would take away too much material to grind out.
